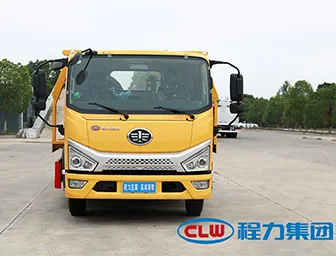

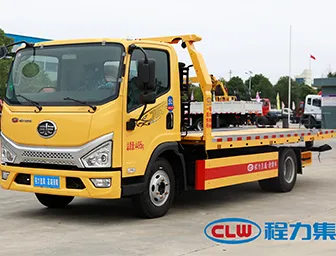

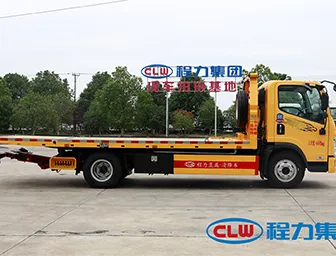

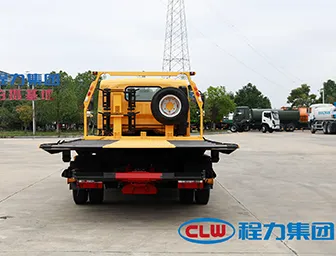

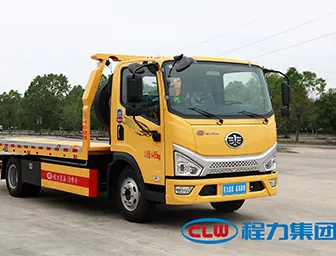

Product Name:Jiefang J6F Blue Plate Wrecker Truck
Product Model:CLw5048TQZc6
Total Weight (Kg):4495
Wheelbase (mm):3800
EngineYunnan :150 horsepower
Dimensions (mm):5995×2500×2350
Transmission:Wanliyang 8-speed gearbox
Tire Specification:7.50R16 steel wire tires
Leaf Springs:3/8+7 thickened leaf springs
Fuel Tank:120L
Flatbed Dimensions (mm):Flip Plate Type
Flatbed Type:5mm tread plate
Hydraulic Cylinder:Winch
Rear Support Arm:6T two-section
Chassis:
Jiefang J6F luxury wide-body single-row cabin, wheelbase 3800mm, Yunnan 150 engine, 2.5L displacement, 4-cylinder 16-valve, Wanliyang 8-speed gearbox, with synchronizer and power take-off, original factory 750R16 steel wire tires, 6.5-ton 270DH axle, speed ratio 4.875, 3/8+7 thickened leaf springs, multifunctional steering wheel, air-suspension seat, original factory air conditioning, electric windows, central locking, air horn, 120L fuel tank, automatic headlights, dual batteries, main power switch.
Superstructure:
7-ton superstructure, rear hydraulic flip plate, through-axle hinge connection, dual-side linkage operation device, separate gantry frame; 5mm tread plate sunken flatbed, plate length 5.8 meters (main plate length 4.15 meters including hinge, tail plate length 1.65 meters), full open track holes; 14mm solid steel frame, frame sunk with bottom holes; 10mm thick manganese steel slide rails, double beams, grid pattern, extended and densely reinforced triangular supports; 110 main hydraulic cylinder, 110 lifting cylinder, rear support arm 110 lifting hydraulic cylinder, 4-ton hydraulic winch, 21-meter steel wire rope, winch sunk; 6-ton two-section rear support arm, rear support arm mounted on main beam.
4 tie-down straps, 1 pair of tire blocks, 1 pair of tire carriers, 1 pair of seven-shaped forks.
The Jiefang J6F Wrecker Truck is a high-performance vehicle designed for towing and vehicle recovery, combining reliability, power, and durability to tackle the toughest recovery operations. With its robust chassis, advanced hydraulic systems, and powerful engine, the Jiefang J6F Wrecker Truck is ideal for road rescue operations, heavy-duty towing, and industrial recovery.
Whether it is used for emergency roadside assistance, off-road recovery, or industrial towing, the Jiefang J6F Wrecker Truck is built to meet the demands of commercial and industrial towing services. This article explores the features, benefits, and applications of the Jiefang J6F Wrecker Truck along with its technical specifications, making it a comprehensive guide for businesses, towing companies, and emergency services looking for a reliable recovery solution.
The Jiefang J6F Wrecker Truck is a specialized vehicle designed for vehicle recovery and towing. It is equipped with a powerful engine, a heavy-duty chassis, and an advanced hydraulic recovery system that allows it to recover vehicles of various sizes, including trucks, buses, trailers, and construction machinery. The Jiefang J6F Wrecker Truck offers a versatile and efficient solution for towing companies, fleet managers, and emergency response teams that require a high-performance vehicle for vehicle recovery operations.
High Towing Capacity: Designed to tow large and heavy vehicles such as buses, trailers, and construction equipment.
Hydraulic Lifting and Winching Systems: Advanced hydraulic systems for effective vehicle recovery, reducing the risk of damage during recovery.
Durable Construction: Built with high-strength materials to withstand the harsh conditions of towing and recovery operations.
Versatile Recovery Options: Capable of performing both front and rear vehicle recoveries, making it suitable for various scenarios.
Enhanced Safety Features: Equipped with safety features such as ABS, air brakes, and power steering for safe operation.
The Jiefang J6F Wrecker Truck is designed for heavy-duty towing. Its powerful engine and robust lifting systems enable it to recover large vehicles, including buses, construction machinery, and other heavy-duty equipment. Whether in urban areas or off-road environments, the truck provides the necessary power to handle challenging recovery tasks.
The Jiefang J6F Wrecker Truck features an advanced hydraulic winch and lifting system that facilitates the recovery of vehicles from difficult locations. The hydraulic system is capable of performing precise vehicle lifting and winching, ensuring that vehicles are safely recovered without causing additional damage.
Constructed with high-strength steel and other durable materials, the Jiefang J6F Wrecker Truck is built to endure the challenges of towing heavy vehicles in demanding environments. Its durable design ensures that the truck can withstand wear and tear while providing long-term reliability, even in tough conditions such as construction zones or emergency road rescue situations.
The Jiefang J6F Wrecker Truck is a versatile vehicle capable of performing both front and rear vehicle recoveries. Its adjustable hydraulic lifting arms and powerful winching system allow for various types of vehicle recovery, making it a perfect solution for a wide range of towing applications, from roadside assistance to industrial towing.
Safety is a top priority in towing operations. The Jiefang J6F Wrecker Truck is equipped with several safety features to ensure safe operation. These include ABS (Anti-lock Braking System), air brakes, and a stable suspension system, all of which contribute to improved vehicle control and safety during towing and recovery operations.
The Jiefang J6F Wrecker Truck is a versatile vehicle that is used across various industries for towing and vehicle recovery operations. Below are some of its most common applications:
One of the primary applications of the Jiefang J6F Wrecker Truck is for roadside assistance. When vehicles break down on highways or in urban areas, this wrecker truck can be quickly deployed to recover the vehicle and restore traffic flow. The hydraulic recovery system allows the truck to safely and efficiently tow vehicles of all sizes.
Industries often require towing services for heavy machinery, construction vehicles, and commercial trucks. The Jiefang J6F Wrecker Truck is built to handle the towing of large industrial vehicles and equipment, making it an essential tool for industries such as construction, mining, and logistics.
The Jiefang J6F Wrecker Truck excels in off-road recovery, where vehicles may get stuck in mud, snow, or on rugged terrains. Its powerful winching and lifting systems allow it to recover vehicles from challenging environments, ensuring that even the most difficult off-road recovery tasks can be handled efficiently.
Fleet management companies often rely on Jiefang J6F Wrecker Trucks for recovery and towing services for their vehicles. Whether a truck breaks down on the road or needs to be relocated, this wrecker truck can quickly and safely recover the vehicle without causing further delays or damage to the fleet.
The Jiefang J6F Wrecker Truck is an essential tool for emergency services, especially for accident recovery. When vehicles are involved in accidents, the wrecker truck can quickly respond to clear the scene, remove damaged vehicles, and restore traffic flow. Its lifting and winching systems allow it to handle even the most difficult accident recovery situations.
| Specification | Details |
|---|---|
| Model | Jiefang J6F Wrecker Truck |
| Engine Type | Diesel, 4x2, Turbocharged |
| Power Output | 150 - 180 horsepower |
| Towing Capacity | 10,000 - 30,000 kg (depending on model) |
| Hydraulic System | Dual hydraulic pump system |
| Dimensions (L x W x H) | 5995 x 2500 x 2350 mm |
| Weight | 4495 kg |
| Max Speed | 80 - 100 km/h |
| Wheelbase | 3800 mm |
| Brakes | ABS, Air Brakes |
| Fuel Tank Capacity | 120L |
| Transmission | Manual or Automatic |
| Safety Features | ABS, Air Brakes, Power Steering, Stability Control |
| Tire Configuration | 7.50R16 steel wire tires |
The Jiefang J6F Wrecker Truck uses a combination of hydraulic power and winching systems to recover immobilized vehicles. The truck’s hydraulic lifting and winching mechanisms allow it to tow and recover vehicles from difficult locations with precision. Whether lifting a vehicle or pulling it from an accident site, the Jiefang J6F Wrecker Truck ensures that vehicles are safely and securely moved.
The truck's advanced hydraulic system allows for easy control during recovery, and its powerful engine provides the necessary torque to tow large vehicles. The Howo Pro Wrecker Truck features advanced safety systems such as ABS and air brakes to ensure smooth and safe operation even under heavy loads.
Regular maintenance is crucial to ensuring the Jiefang J6F Wrecker Truck continues to perform reliably. Here are some essential maintenance tasks:
Hydraulic System Maintenance: Check hydraulic fluid levels regularly, and inspect hydraulic hoses and winch systems for leaks or damage.
Engine and Transmission Checks: Perform routine oil changes, air filter replacements, and transmission inspections to ensure optimal engine performance.
Brake System Maintenance: Regularly check the ABS and air brake systems to maintain braking efficiency.
Tire and Suspension Checks: Inspect tires for wear and tear, and ensure proper suspension system performance.
Winch and Lifting System: Inspect winch cables and lifting arms for rust or damage, and lubricate moving parts for smooth operation.
The Jiefang J6F Wrecker Truck is a powerful, durable, and versatile solution for heavy-duty towing and vehicle recovery. Its advanced hydraulic systems, robust construction, and high towing capacity make it ideal for a wide range of applications, from roadside assistance to industrial vehicle recovery. With regular maintenance, the Jiefang J6F Wrecker Truck provides long-term reliability and high performance, making it an essential tool for towing companies, emergency services, and industrial operations.
